In the space of Data Science/Analytics, we rely heavily on automation to drive insights from several data sources. Docker, Python, node, JSON and YAML are a amongst a wide range of technologies used as part of the automation.

I recently came across Rabix and Common Workflow Language (CWL) in the space of biomedical research. As a developer, and not having come from a biomedical background, I wanted to explore opportunities for using Rabix/CWL.

After looking into Cancer Genomics Cloud and signing up, I started to get a feel for Rabix/CWL. I decided to setup a local Rabix/CWL playground on my Windows WSL2 environment. This would also be a prelude to some personal discovery work into CWL & Apache Airflow.

This article aims to cover the following:

Installation of Rabix Composer on Windows 10, with WSL2 installed/enabled
Configuring the Rabix Local Executor which would allow workflows to be run/tested locally
Creation/Execution of sample pipelines

WSL2 References & Prerequisites

It’s important to note that Linux distributions enabled with WSL2 are Windows hosted Virtual Machines which run using a Linux Kernel. As such, we’re able to run Linux apps natively, including Rabix.

My attempts to get the Windows version of Rabix working with a local executor, were unsuccessful. Perhaps tinkering with different Java versions might get you over the line if you decide to experiment with this approach.

Requirements

In order to access the Rabix Composer GUI from WSL2 VM, we need an Xserver running on the Windows host, which will render our display. For this article the Home Edition of Mobaxterm is used as an Xserver
A WSL2 enabled Linux distribution is required, and for the setup, Debian 10, Buster from Microsoft Store was used. The release details for the OS are shown below.

$ sudo apt install lsb-release
$ lsb_release -aDistributor ID: Debian
Description:    Debian GNU/Linux 10 (buster)
Release:        10
Codename:       buster

Docker for Desktop needs to be installed, with WSL2 integration enabled for the respective Linux distribution

Install/Configure XServer (MobaXterm)

Download Mobaxterm
From the Windows host, install MobaXterm
Launch the program and select Settings --> Configuration. Choose the options shown below on the X11 tab

Note: If you on shared network, setting “X11 remote access” requests to “full” may not be an appropriate option, in which case, select “restricted”

We need to know the XServer IP address/details. These are required to direct Linux WSL2 to the location (DISPLAY=) where the Rabix display is to be sent

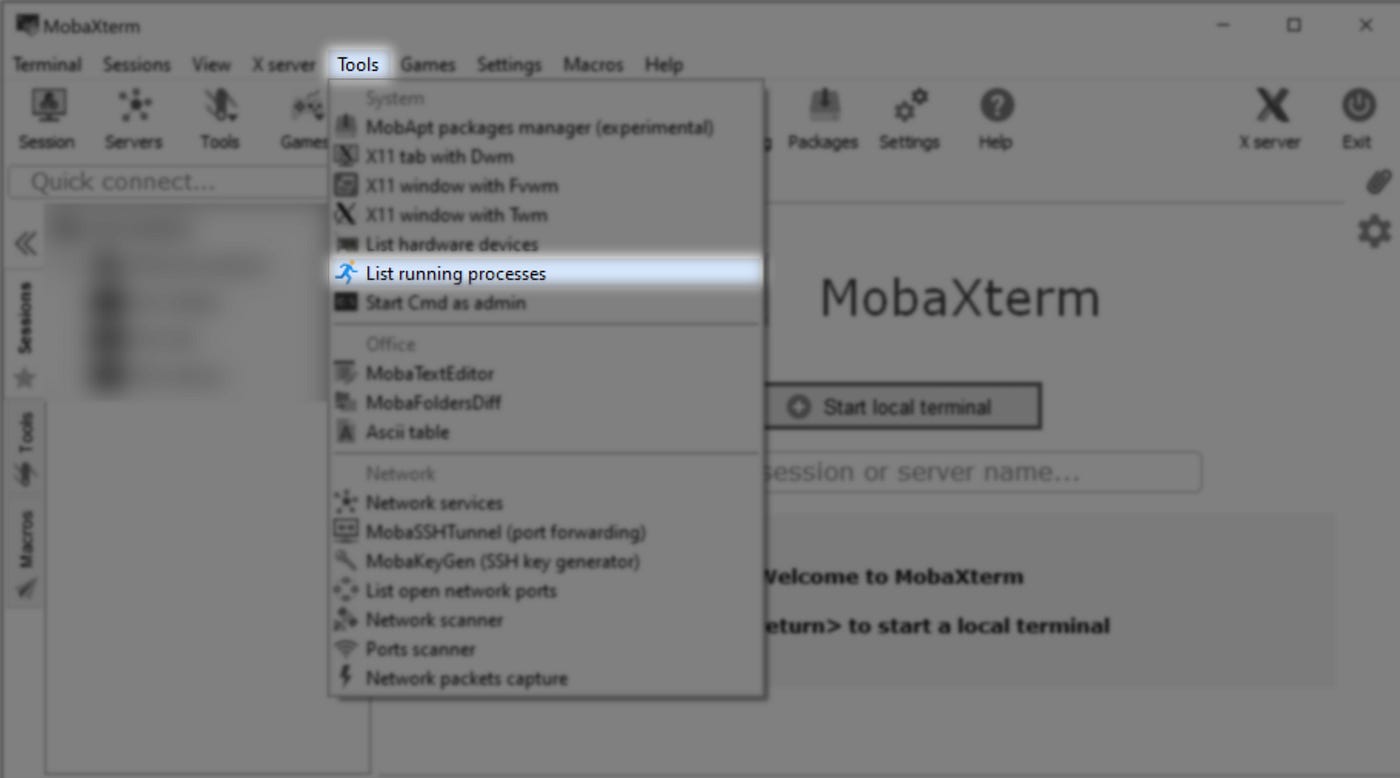

To find the Xserver IP, go to Tools --> List running processes

Make a note of the IP address as this will required it later on

Installation of Rabix and Dependencies

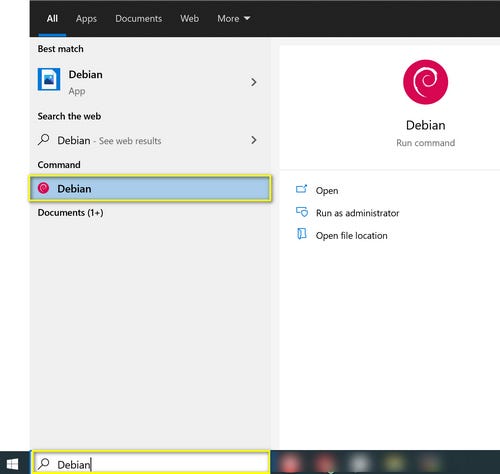

Open a prompt within our WSL2 Linux distro. Debian is used for this setup:

Install dependencies for X support

$ sudo apt update
$ sudo apt-get install libgtk2.0-0 fuse mesa-utils \
    wget libdbus-glib-1-2 kdialog desktop-file-utils xdg-utils \
    software-properties-common gnupg libnss3

Install JDK8 (this version is listed as a requirement at the official Rabix site).

Download the tar.gzfrom https://www.oracle.com/java/technologies/javase/javase-jdk8-downloads.html corresponding to your machine’s architecture.
The example below shows the installation steps for Linux x64 platform using jdk-8u261-linux-x64.tar.gz

$ sudo mkdir -p /usr/lib/jvm
$ sudo tar zxvf jdk-8u261-linux-x64.tar.gz -C /usr/lib/jvm
$ rm jdk-8u261-linux-x64.tar.gz$ sudo update-alternatives \
--install "/usr/bin/java" "java" \
/usr/lib/jvm/jdk1.8.0_261/bin/java" 1$ sudo update-alternatives \
--set java /usr/lib/jvm/jdk1.8.0_261/bin/java

Configure JAVA_HOME and Global Profile

Add the following entries

export JAVA_HOME=/usr/lib/jvm/jdk1.8.0_261
export PATH=$JAVA_HOME/bin:$PATH

to the end of global profile file (or $HOME/.bashrc for individual profile)

$ sudo vi /etc/profile..
..
export JAVA_HOME=/usr/lib/jvm/adoptopenjdk-8-hotspot-amd64
export PATH=$JAVA_HOME/bin:$PATH

Activate the new configuration by exiting and logging back into WSL2 distro prompt, or by running:

$ source /etc/profile

Download Rabix

The latest release of Rabix can be found at the following link: https://github.com/rabix/composer/releases.

As of now, the latest release (1.0.2), can be downloaded to an appropriate subfolder via:

$ mkdir $HOME/rabix
$ cd $HOME/rabix
$ wget https://github.com/rabix/composer/releases/download/1.0.2/rabix-composer.1.0.2.AppImage -O rabix-composer.1.0.2.AppImage

Add execute privileges

$ sudo chmod 755 rabix-composer.1.0.2.AppImage

Add Display Server to ~/.bashrc

Using the address of the XServer we noted earlier on, add the following to the bottom of your ~/.bashrc file, replacing the IP address with your XServer's IP
vi ~/.bashrc

export DISPLAY=192.168.1.111:0.0
export LIBGL_ALWAYS_INDIRECT=1

The LIBGL_ALWAYS_INDIRECT=1 variable enables OpenGL hardware rendering (if supported). If you experience issues in subsequent steps related to display output, try changing the "OpenGL acceleration" setting in the MobaXterm X11 Configuration tab from Hardware to Software

Launch/Configure Rabix

Start Rabix

$ cd $HOME/rabix
$ sudo ./rabix-composer.1.0.2.AppImage

Rabix frontend should appear in a Window on your host
Check Rabix is configured to use the bundled executor, and also configure an output folder for logs Output folder: $HOME/rabix/Executions

Sample Workflows

Ensure Docker is running before attempting to run the following samples.

1. Running a Command from within a Docker Container

We are going to build a simple workflow which pulls an Alpine docker image and runs and spawns a container, from which we run an echo <message>. We'll be able to pass in the message parameter value during testing from Rabix.

Start by adding a local workspace from within Rabix My Projects --> Open a Project --> Select Folder
Add workspace location $HOME/rabix
You should now be back at the home screen and on the left hand pane, workspace rabix should be visible under local files
Right click on rabix folder in the left hand pane and choose New CommandLineTool
For the App name enter Alpine Docker Image
Save to $HOME/rabix/alpine-docker.cwl
Click on the Code tab and paste the following

cwlVersion: v1.0
class: CommandLineTool
label: Alpine Docker Image
baseCommand:
  - echo
inputs:
  - id: message
    type: string
    inputBinding:
      position: 1
outputs:
  - id: std_out
    type: stdout
requirements:
  - class: DockerRequirement
    dockerPull: alpine
stdout: output.txt

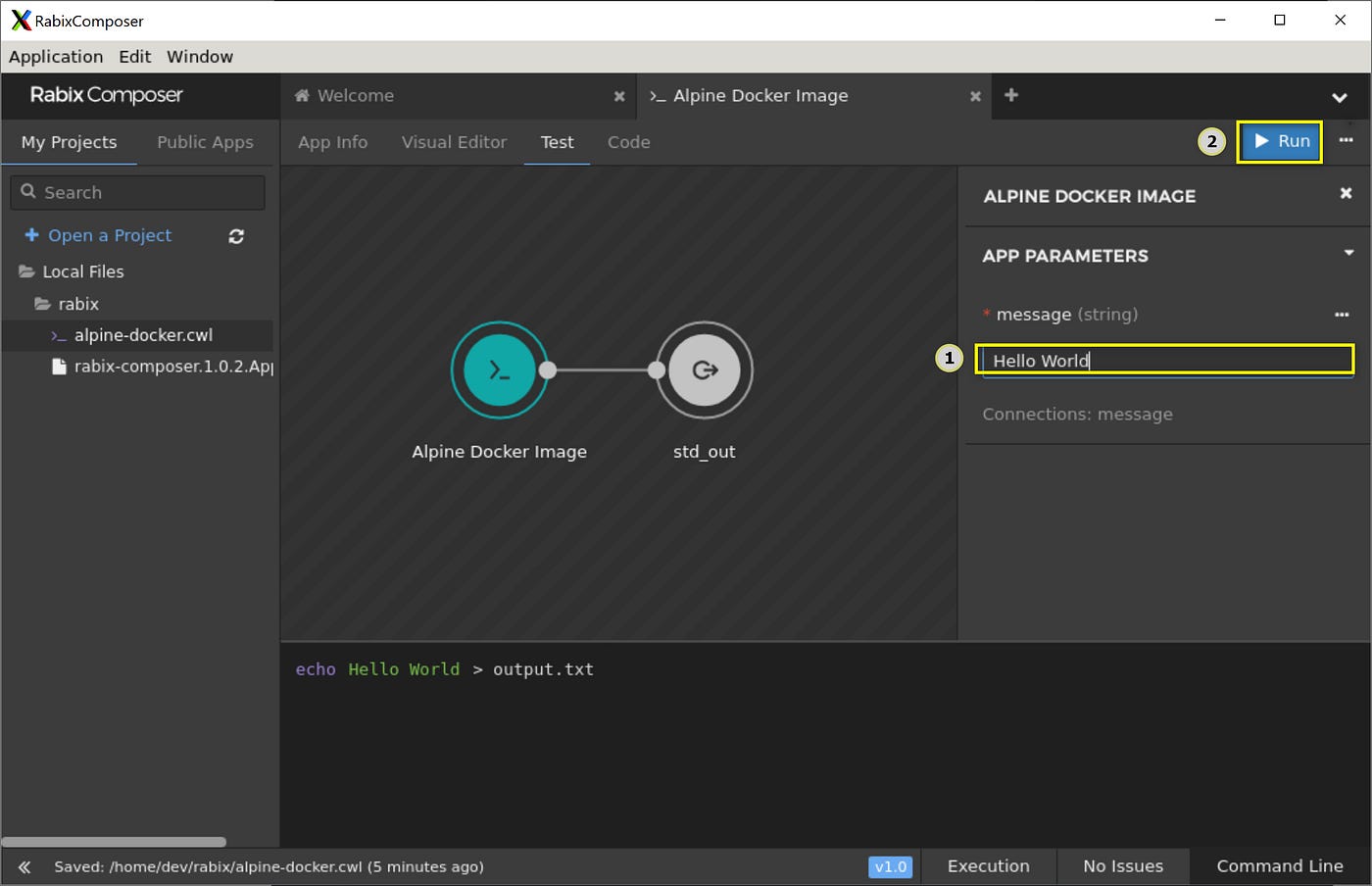

To test the workflow, click on the Test tab and for the message parameter, enter value Hello World
Click Run to execute the workflow

If all goes well, you should be able to see output similar to the following, indicating the workflow successfully completed

Detailed logs related to the workflow execution are stored at $HOME/rabix/Executions

You can use either of the following methods to view the log output:

WSL2 terminal using standard Linux commands, such as cat
Adding the $HOME/rabix/Executions folder to the Rabix workspace, which will allow access to the logs as plain text files from Rabix
or, by using Windows Explorer to browse the Linux distro file system

For example, to view output written to file output.txt for the above job using Windows Explorer, replace the parameters and browser to the location using Windows Explorer.

\\wsl$\<linux distro name>
\home
\<Linux distro username>
\rabix
\Executions
\local
\<workflow name>
\<YYYY-MM-DD-HH-MM-SS>
\app-<YYYY-MM-DD-HH-MM-SS.SSS>
\root

2. Workflow with Embedded Python Script

The following workflow contains an inline/embedded python script, samplepy.py:

The script is created/populated and executed during the execution of the workflow inside a python:3 docker container
The python script sets a variable var="value of var" and prints its value stdout
stdout, is mapped to file export.txt

Proceeding as per the prior workflow:

Right click on rabix folder in the left hand pane and choose New CommandLineTool
For the App name enter Run an Embedded Python script
Save as $HOME/rabix/pyscript.cwl
Copy the below and paste into the Code area in Rabix

cwlVersion: v1.0
class: CommandLineTool
label: Run an embedded Python script
hints:
  DockerRequirement:
    dockerPull: python:3
baseCommand: python

inputs:
  script:
    type: File
    inputBinding:
      position: 1
    default:
        class: File
        basename: "samplepy.py"
        contents: |-
          var = "value of var"
          print(var)

outputs:
  results:
    type: stdout

stdout: export.txt

Run the workflow

Check the output

Where to From Here?

Rabix and CWL have provided an additional perspective in the area of solution design/implementation. The way in which CWL is implemented promotes containerised, parameter driven components.

Having gained a basic knowledge of CWL workflows and establishing a local test environment, some possible areas I aim to cover off on in future are:

Setting up Rabix executor with a TES server
Apache Airflow scheduling of workflows, with a focus on containerising processes
Setup Rabix to use Cloud apps/projects, such as the publicly available apps offered at Cancer Genomics Cloud developer portal
